Warning

The parser expects fully triangulated meshes. Convert quads or n-gons inside your DCC tool before exporting, otherwise the import will fail.

Wavefront Object Files

GL\Geometry\ObjFileParser lets you pull Wavefront .obj assets straight into your PHP runtime. This page walks you through loading a model, shaping the vertex layout you need, handling materials, and producing indexed meshes that drop into your renderer.

• Keep your .mtl files beside the .obj, since materials resolve paths relative to the model.
• Want a quick demo? Run the example:

php examples/05_objloading.php

Loading Models

Creating the parser is the only setup step. Point it at a file path, and it opens a shared resource that keeps vertex data, indices, and materials in native memory.

use GL\Geometry\ObjFileParser;

$parser = new ObjFileParser(__DIR__ . '/my_asset.obj');

printf("Loaded %d materials\n", count($parser->materials));
printf("Loaded %d groups\n", count($parser->groups));
printf("Loaded %d objects\n", count($parser->objects));

Will print something like:

Loaded 5 materials
Loaded 1 groups
Loaded 19 objects

Vertex Layouts

getVertices returns a FloatBuffer. You can control the what attributes are included into the buffer by passing a layout string. Each character becomes a vertex attribute in the order provided.

$vertices = $parser->getVertices('pntbc', $specifcGroup); // <- pass layout

Token	Components	Description
p	3	Position (x, y, z)
n	3	Normal from the file
N	3	Generated flat normal
c	2	Texture coordinates (u, v)
t	3	Generated tangent
b	3	Generated bitangent

Tip

Tangents, bitangents and flat normals are generated on demand.

Examples:

• pnc yields [px, py, pz, nx, ny, nz, u, v, ...].
• p yields just positions [px, py, pz, ...].
• pN yields positions and flat normals [px, py, pz, nfx, nfy, nfz, ...].
• etc..

Uploading to OpenGL

The returned buffer object can then be uploaded to your GPU, when using VISU we have a convenient class to handle this for us:

VISUPHP-GLFW

use VISU\Graphics\BasicVertexArray;

// fetch all vertices
$vertices = $parser->getVertices('pnc'); // <- note the 'pnc' layout

// create a basic vertex array [px, py, pz, nx, ny, nz, u, v] aka [3, 3, 2]
$vao = new BasicVertexArray($gl, [3, 3, 2]);
$vao->upload($vertices);

// fetch all vertices
$vertices = $parser->getVertices('pnc');

// build OpenGL VAO/VBO
// [position (3), normal (3), texcoord (2)]
$stride = 3 + 3 + 2; // floats per vertex

// create & bind buffers
$vao = glGenVertexArrays(1);
$buffer = glGenBuffers(1);

glBindVertexArray($vao);
glBindBuffer(GL_ARRAY_BUFFER, $buffer);
glBufferData(GL_ARRAY_BUFFER, $vertices, GL_STATIC_DRAW);

// setup vertex attributes
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, $stride * GL_SIZEOF_FLOAT, 0);
glEnableVertexAttribArray(0);

glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, $stride * GL_SIZEOF_FLOAT, 3 * GL_SIZEOF_FLOAT);
glEnableVertexAttribArray(1);

glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, $stride * GL_SIZEOF_FLOAT, 6 * GL_SIZEOF_FLOAT);
glEnableVertexAttribArray(2);

Leave the $group argument empty to merge the entire file. Supply a Group from $parser->groups or $parser->objects when you only want the geometry for a single section.

Working With Materials

getMeshes() slices the model by Material and returns an array of Mesh objects. Each mesh bundles everything you need to draw: a vertex buffer, an optional index buffer, a material descriptor, and an axis-aligned bounding box.

$meshes = $parser->getMeshes('pnc'); // <- pass layout

foreach ($meshes as $mesh) {
    $material = $mesh->material;
    echo $material->name . "\n";
    echo str_repeat("-", strlen($material->name)) . "\n";

    if ($material) {
        echo "  Diffuse color: " .  $material->diffuse . "\n";
        echo "  Specular color: " .  $material->specular . "\n";
        $vertices = $mesh->vertices; // FloatBuffer
        // etc..
    }
    echo "\n";
}

Will print something like:

iron
----
  Diffuse color: vec3(0.3765, 0.3765, 0.3765)
  Specular color: vec3(0.25, 0.25, 0.25)

textile
-------
  Diffuse color: vec3(0.8196, 0.7529, 0.6706)
  Specular color: vec3(0.25, 0.25, 0.25)

Material properties mirror common MTL fields such as ambient, diffuse, specular, shininess, dissolve, and illuminationModel. Use them to drive your shader uniforms or to build the inputs for a lightweight PBR workflow.

Bounding boxes are available through aabbMin and aabbMax (Vec3). They are perfect for quick frustum checks, simple collisions, or framing a camera before the first draw call.

Groups and Objects

Wavefront files distinguish between g groups and o objects. The parser keeps both exposed through $parser->groups and $parser->objects, each providing name, faceCount, faceOffset, and indexOffset. In php-glfw we consider both as Group instances since they behave identically from a geometry extraction standpoint.

Groups allow you to partially access the model geometry. This is useful to:

• render only a subsection of a complex asset
• apply distinct transforms or materials per part

// $parser->groups or $parser->objects
foreach ($parser->groups as $group) {
    printf("Group %s spans %d faces\n", $group->name, $group->faceCount);
    $buffer = $parser->getVertices('p', $group);
}

Putting It All Together

The following example is going to use VISU, as making a plain OpenGL example would be too verbose and contain 90% boilerplate code.

VISU Note

The examples below expect you to have VISU available.

Install VISU via Composer if you haven't already:

composer require phpgl/visu

Create a new PHP file (e.g. example.php) and add the following code:

<?php

use VISU\Quickstart;
use VISU\Quickstart\{QuickstartApp, QuickstartOptions};
use VISU\Graphics\RenderTarget;
use VISU\Graphics\Rendering\RenderContext;

require __DIR__ . '/vendor/phpgl/visu/bootstrap_inline.php';

$quickstart = new Quickstart(function(QuickstartOptions $options)
{
    $options->ready = function(QuickstartApp $app) {
        // initialize
    };

    $options->draw = function(QuickstartApp $app, RenderContext $renderContext, RenderTarget $renderTarget) {
        // draw loop
    };
});

$quickstart->run();

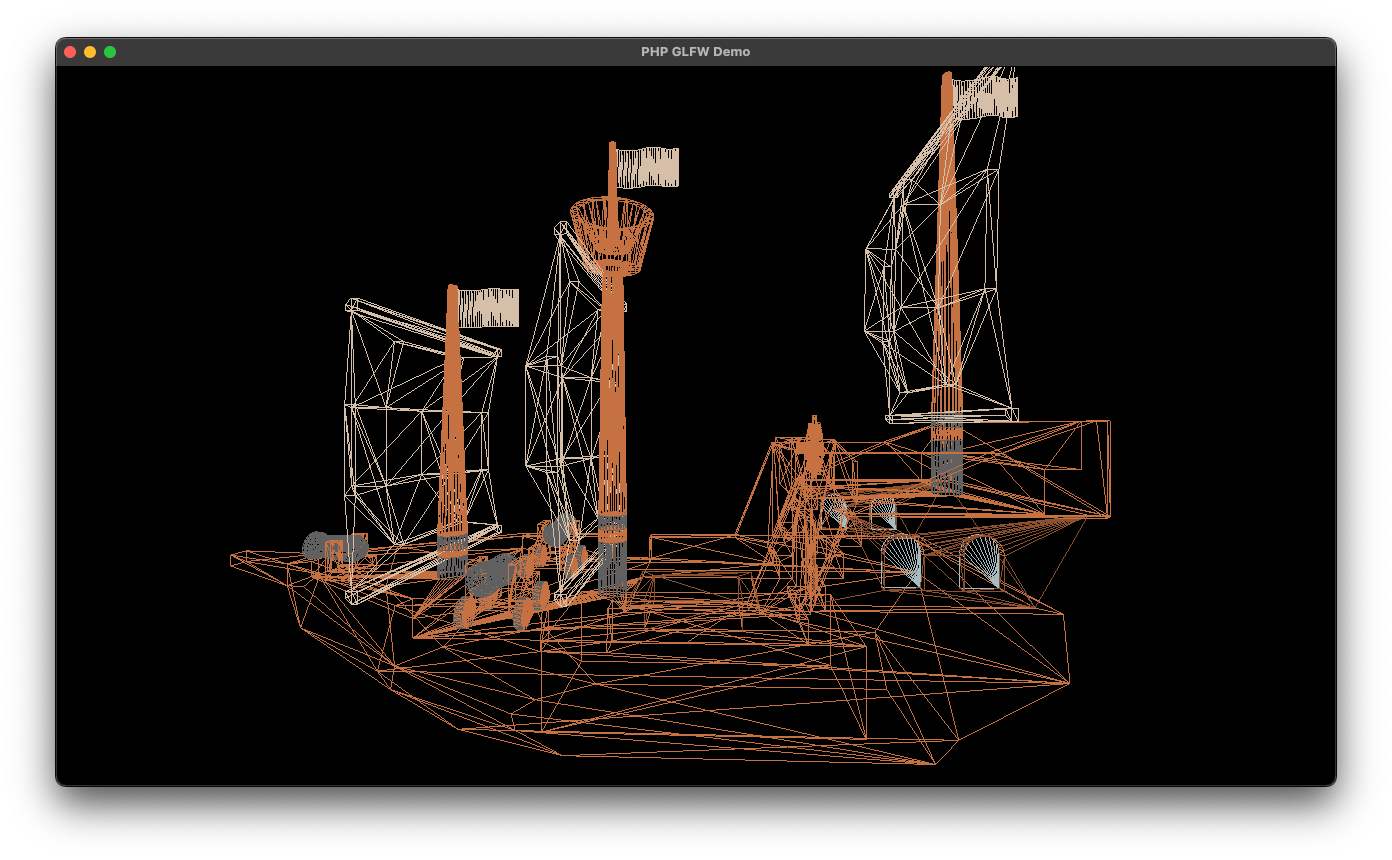

Running this will open a window with an OpenGL context and a basic render loop.

So first as usual we create a parser instance and load an obj file:

use GL\Geometry\ObjFileParser;

$parser = new ObjFileParser(__DIR__ . '/assets/ship.obj');

Building a Buffer

Next we build a vertex buffer with the positions of our mesh and collect material infos like the diffuse color:

So that we do not have to deal with multiple buffers for each mesh, we create a single large vertex buffer and append each mesh's vertices to it. That way we also don't have to re-bind multiple buffers when rendering.

$vertexBuffer = new FloatBuffer();
$vertexOffset = 0;
$objects = [];
foreach($parser->getMeshes('p') as $mesh)
{
    // append the mesh vertices to the main buffer
    $vertexBuffer->append($mesh->vertices);

    // every vertex has 3 floats (x, y, z)
    $vertexCount = $mesh->vertices->size() / 3;

    // store the object info
    $objects[] = [
        'vertexOffset' => $vertexOffset,
        'vertexCount' => $vertexCount,
        'color' => $mesh->material->diffuse,
    ];

    // update the vertex offset for the next object
    $vertexOffset += $vertexCount;
}

$vertexBuffer now contains all vertices of the entire model, while $objects holds the necessary info to render each mesh separately. Which we want to do so that we can apply the correct material color.

Uploading to GPU

Now we need to upload the vertex buffer to the GPU. So that we can render it, for simple buffers VISU provides the BasicVertexArray class which wraps a VAO and VBO for us:

$vao = new BasicVertexArray($gl, [3]);
$vao->upload($vertexBuffer);

Rendering the objects

Then in the render loop we bind the VAO and draw each object separately, applying the correct color uniform before each draw call:

// bind the VAO
$vao->bind();

// draw each object
foreach($state->objects as $object)
{
    $shader->setUniformVec3("u_color", $object['color']);
    $vao->draw($object['vertexOffset'], $object['vertexCount']);
}

Full Example

All of the above combined into into a full example looks like this:

<?php

use GL\Buffer\FloatBuffer;
use GL\Math\{Mat4, Vec3};
use VISU\Graphics\{BasicVertexArray, RenderTarget, ShaderProgram, ShaderStage};
use VISU\Graphics\Rendering\RenderContext;
use VISU\Quickstart;
use VISU\Quickstart\{QuickstartApp, QuickstartOptions};

require __DIR__ . '/vendor/phpgl/visu/bootstrap_inline.php';

class ExampleState {
    public ShaderProgram $shader;
    public BasicVertexArray $vao;
    public FloatBuffer $vertexBuffer;
    public array $objects = [];
};

$state = new ExampleState();

$quickstart = new Quickstart(function(QuickstartOptions $options) use($state)
{
    $options->ready = function(QuickstartApp $app) use($state)
    {
        $parser = new \GL\Geometry\ObjFileParser(__DIR__ . '/ship_light.obj');

        $state->objects = [];
        $state->vertexBuffer = new FloatBuffer();
        $vertexOffset = 0;
        foreach($parser->getMeshes('p') as $mesh)
        {
            // append the mesh vertices to the main buffer
            $state->vertexBuffer->append($mesh->vertices);

            // every vertex has 3 floats (x, y, z)
            $vertexCount = $mesh->vertices->size() / 3;

            // store the object info
            $state->objects[] = [
                'vertexOffset' => $vertexOffset,
                'vertexCount' => $vertexCount,
                'color' => $mesh->material->diffuse,
            ];

            // update the vertex offset for the next object
            $vertexOffset += $vertexCount;
        }

        // now create the VAO
        $state->vao = new BasicVertexArray($app->gl, [3]);
        $state->vao->upload($state->vertexBuffer);

        // create the shader program
        $state->shader = new ShaderProgram($app->gl);
        $state->shader->attach(ShaderStage::vertex(<<<GLSL
        #version 330 core

        layout(location = 0) in vec3 a_pos;

        uniform mat4 u_proj_matrix;
        uniform mat4 u_view_matrix;
        uniform mat4 u_model_matrix;

        void main()
        {
            gl_Position = u_proj_matrix * u_view_matrix * u_model_matrix * vec4(a_pos, 1.0);
        }
        GLSL
        ));

        $state->shader->attach(ShaderStage::fragment(<<<GLSL
        #version 330 core
        out vec4 fragment_color;
        uniform vec3 u_color;
        void main()
        {
            fragment_color = vec4(u_color, 1.0);
        }
        GLSL
        ));
        $state->shader->link();
    };

    $options->draw = function(QuickstartApp $app, RenderContext $renderContext, RenderTarget $renderTarget) use($state)
    {
        // clear the screen
        $renderTarget->framebuffer()->clear();

        // enable depth testing
        glEnable(GL_DEPTH_TEST);

        // bind the VAO
        $state->vao->bind();
        $state->shader->use();

        // set up the camera matrices
        $aspectRatio = $renderTarget->width() / $renderTarget->height();
        $projMatrix = new Mat4();
        $projMatrix->perspective(45.0, $aspectRatio, 0.1, 100.0);
        $viewMatrix = new Mat4();
        $viewMatrix->translate(new Vec3(0.0, -5.0, -15.0));
        $modelMatrix = new Mat4();
        $modelMatrix->rotate(glfwGetTime() * 0.5, new Vec3(0.0, 1.0, 0.0));

        $state->shader->setUniformMat4("u_proj_matrix", false, $projMatrix);
        $state->shader->setUniformMat4("u_view_matrix", false, $viewMatrix);
        $state->shader->setUniformMat4("u_model_matrix", false, $modelMatrix);

        // draw each object
        foreach($state->objects as $object)
        {
            $state->shader->setUniformVec3("u_color", $object['color']);
            $state->vao->draw($object['vertexOffset'], $object['vertexCount']);
        }
    };
});

$quickstart->run();
